821 - Preservation of Land Monuments and Property Corners

821 Preservation of Boundary Monuments

GENERAL DESCRIPTION

[top of page]

---

MATERIALS

Contact your Region Surveyor for additional monument box covers if needed during construction.

[top of page]

---

EQUIPMENT

-Reserved-

[top of page]

---

PRECONSTRUCTION

Field Witnesses

Be sure to contact the Region Surveyor by writing prior to work commencing for permission to not use straight line witnesses(821.01.B.2). All objects used as witnesses to reestablish the point shall not be marked as remove or adjust in the plans and will be outside of the potential construction activity & utility relocation limits. The witnesses shall be field measured and turned into the Region Surveyor before construction(821.01.B.1). If the Region Surveyor agrees to not using straight line witnesses the points must still be verified by witnesses and not set by coordinates alone.

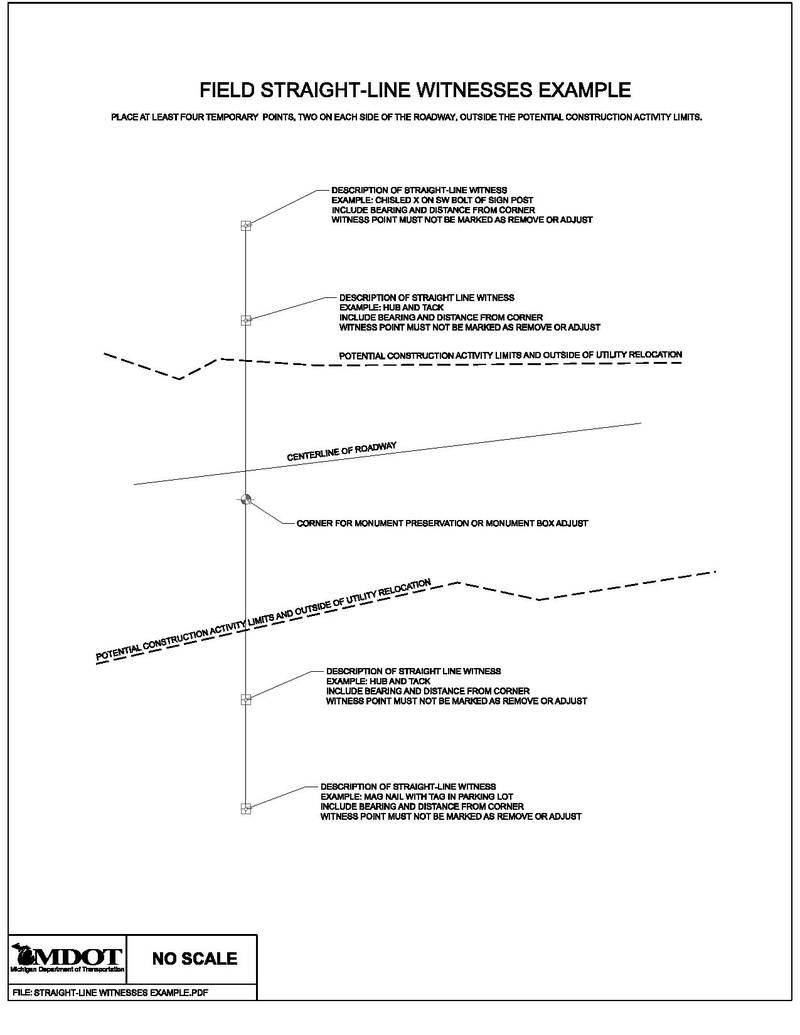

Field Straight-Line Witnesses Example

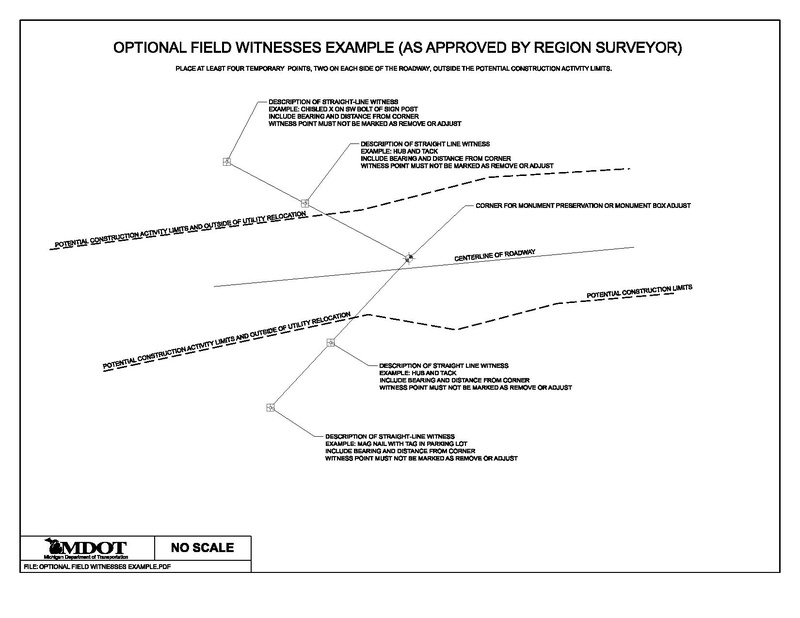

Optional Field Witnesses Example (AS APPROVED BY REGION SURVEYOR)

[top of page]

---

CONSTRUCTION

Land Corner Recordation Certificate

Before recording the LCRC’s for all PLSS corners and alignment points a draft of the Land Corner Recordation Certificate must be submitted to the Region Surveyor for review, prior to recording(821.01.B.4). PLSS corners that have not been re-monumented still needs to be recorded and a comment in Part B stating, “Found before construction”. Notes if available from the Region Surveyor should also be included in the LCRC, along with the MCS coordinate values of the points. The observation date, Datum and Epoch will be listed with each coordinate value. For all points marked as Preserve or Protect a table of all corners shall be submitted to the Region Surveyors.

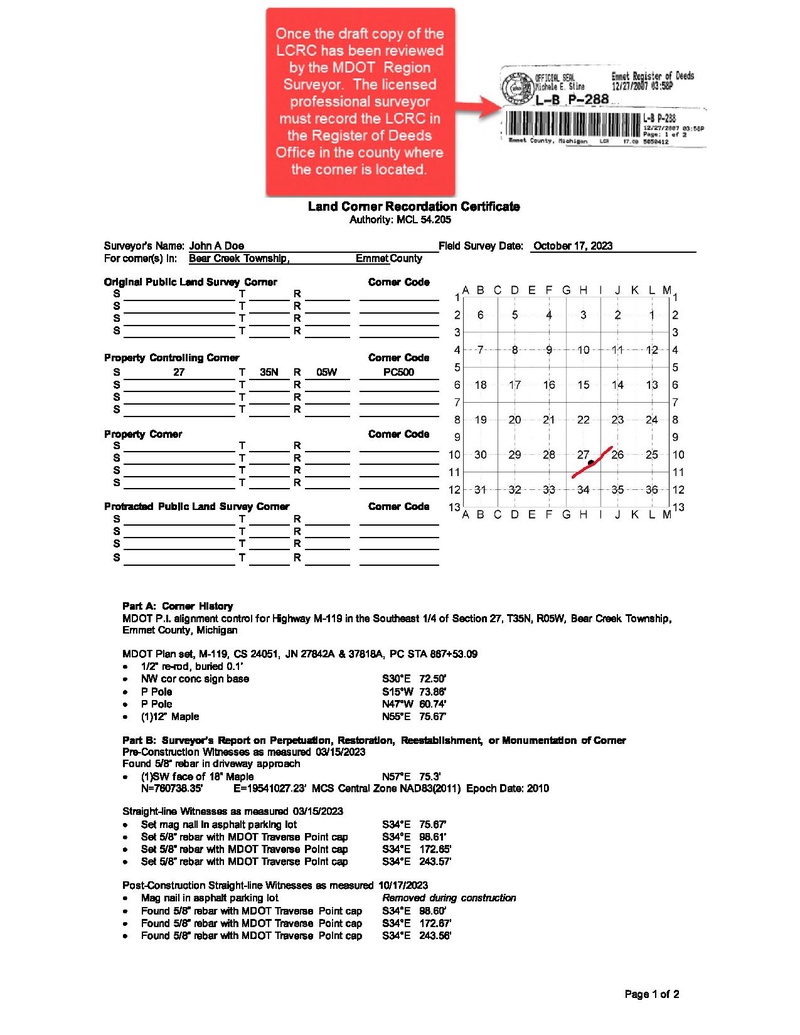

Alignment Point LCRC Straight Line Witnesses Example - Page 1

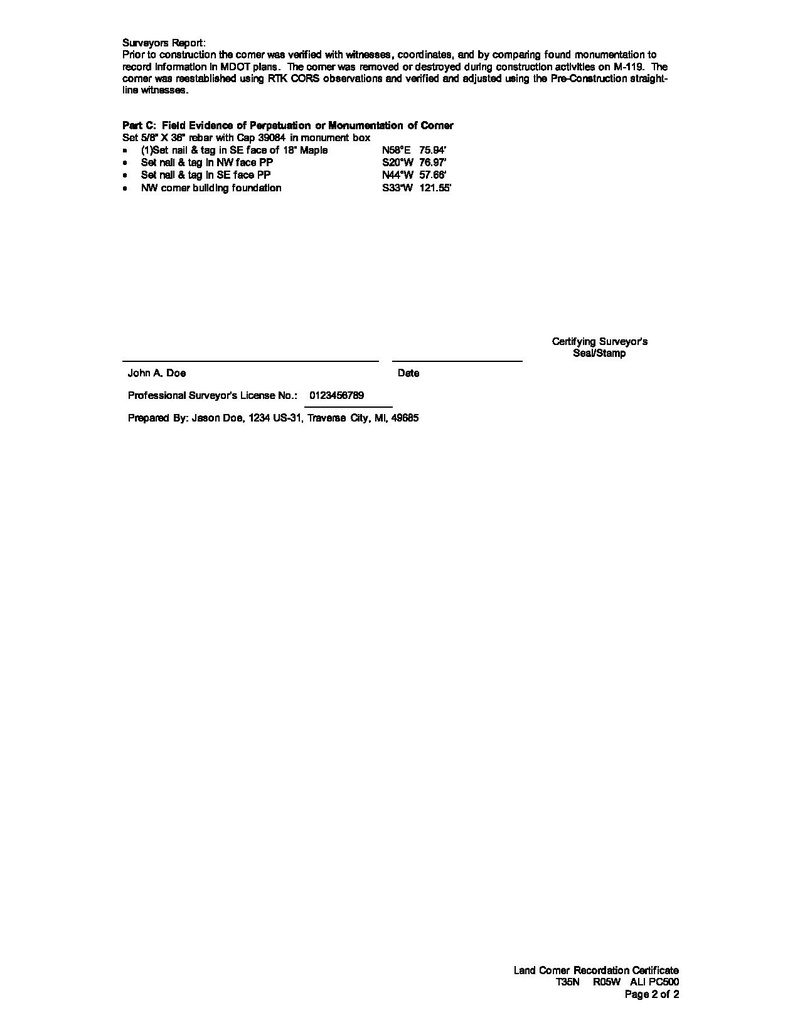

Alignment Point LCRC Straight Line Witnesses Example - Page 2

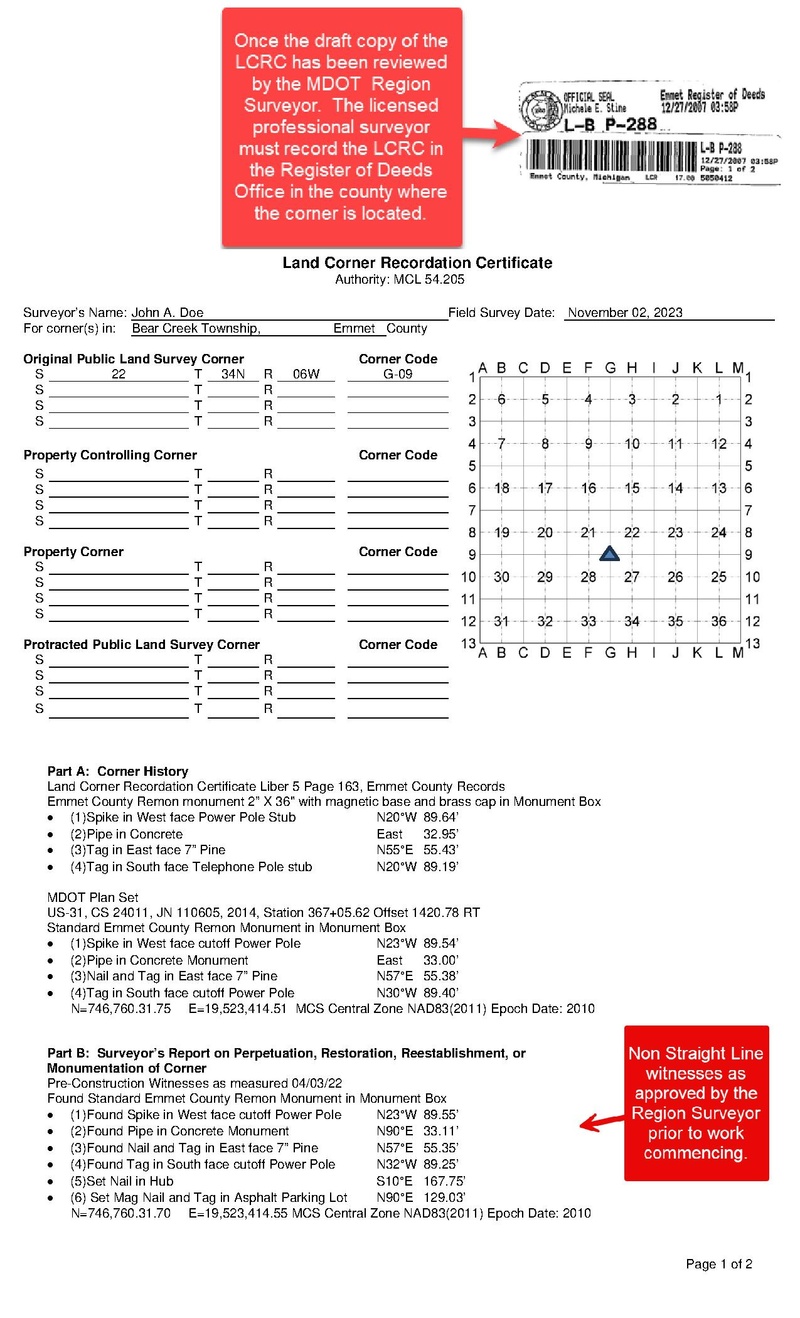

PLSS Corner LCRC Natural Witnesses Example - Page 1

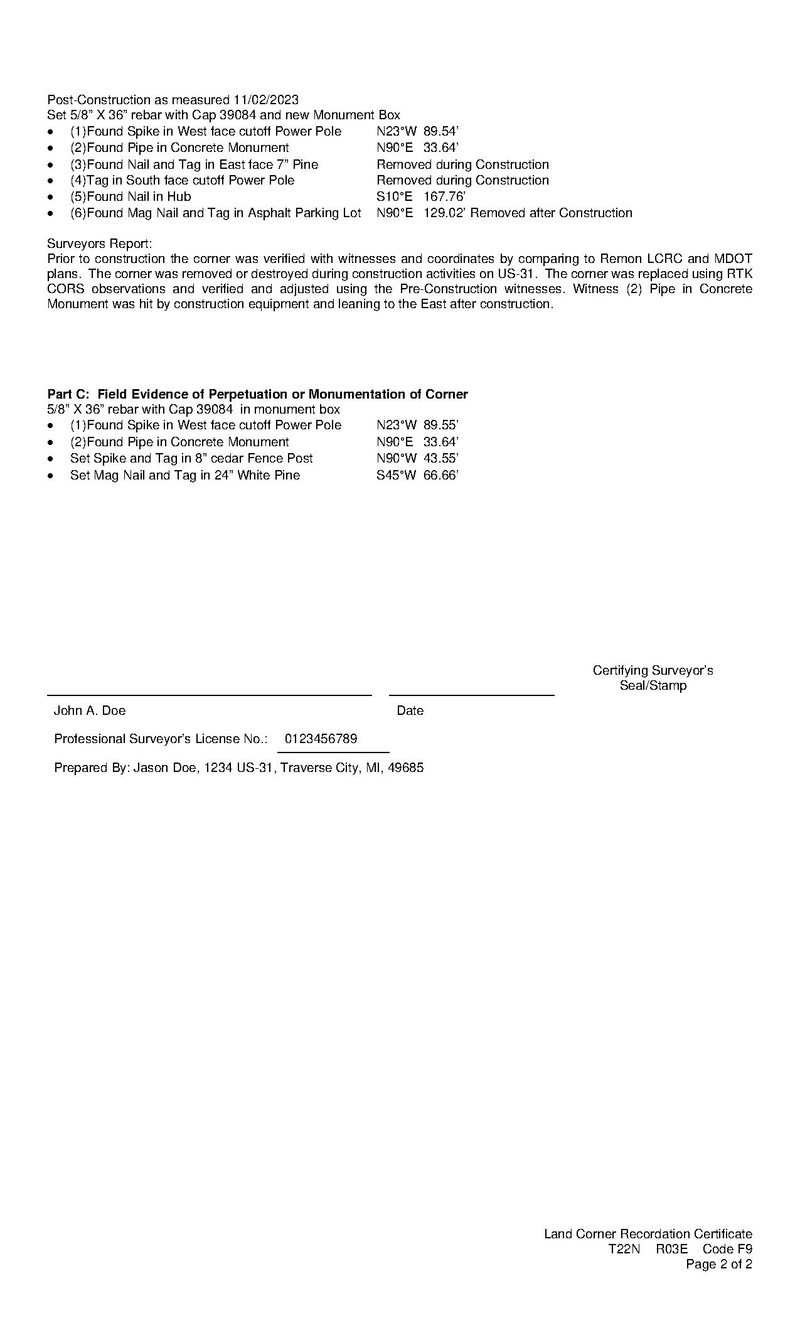

PLSS Corner LCRC Natural Witnesses Examplem - Page 2

Corner Tables

For all points marked as Preserve or Protect a table of all corners shall be submitted to the Region Surveyors.

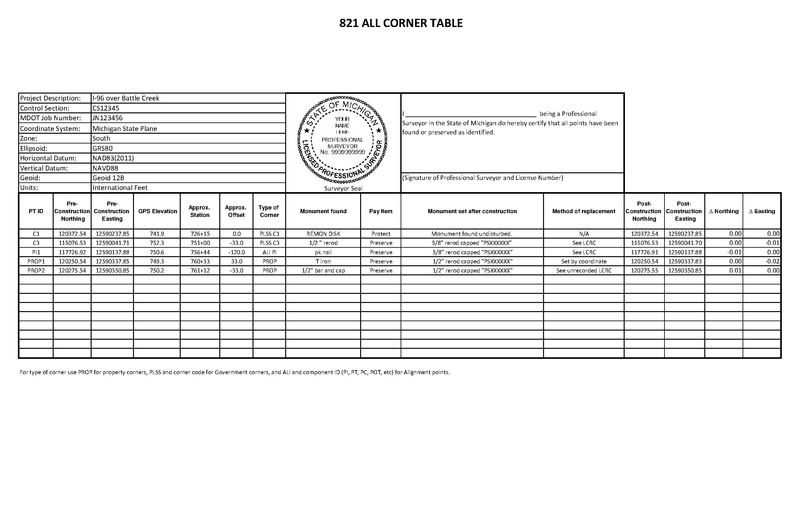

821 Corner Table Example

A copy of the template is located here 821 Corner Table Template.xlsx

Reference Monuments

Consult with the Region Surveyor prior to using reference monuments at busy intersections or where it is impossible to set the physical corner.

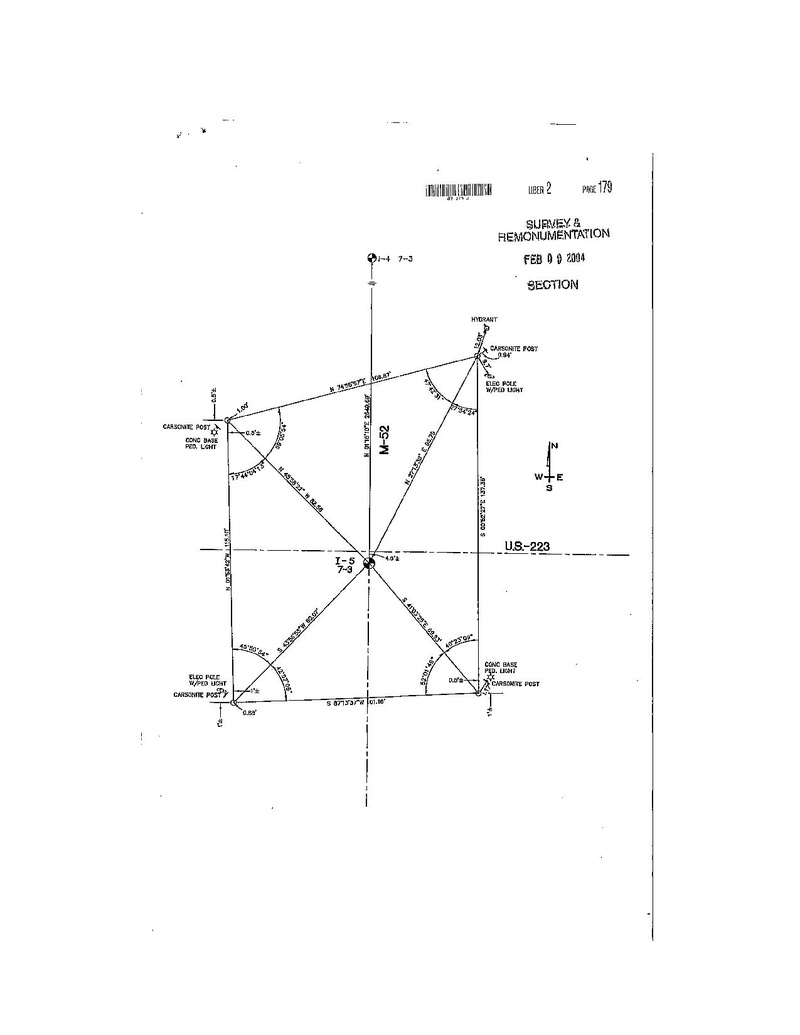

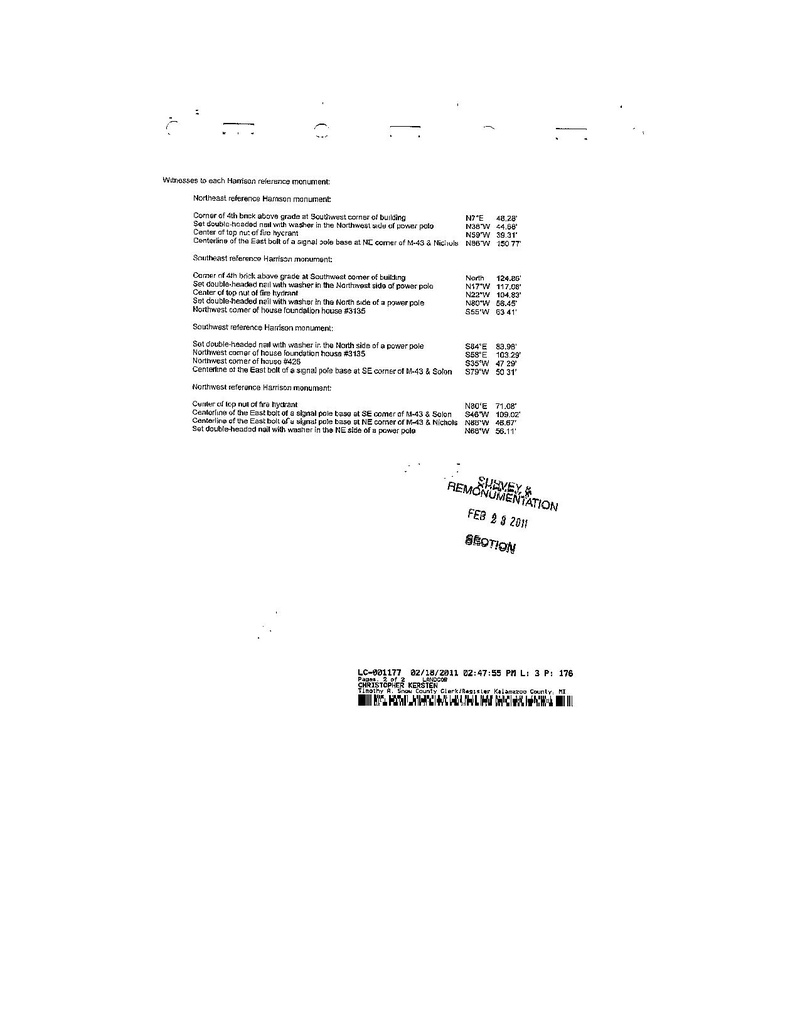

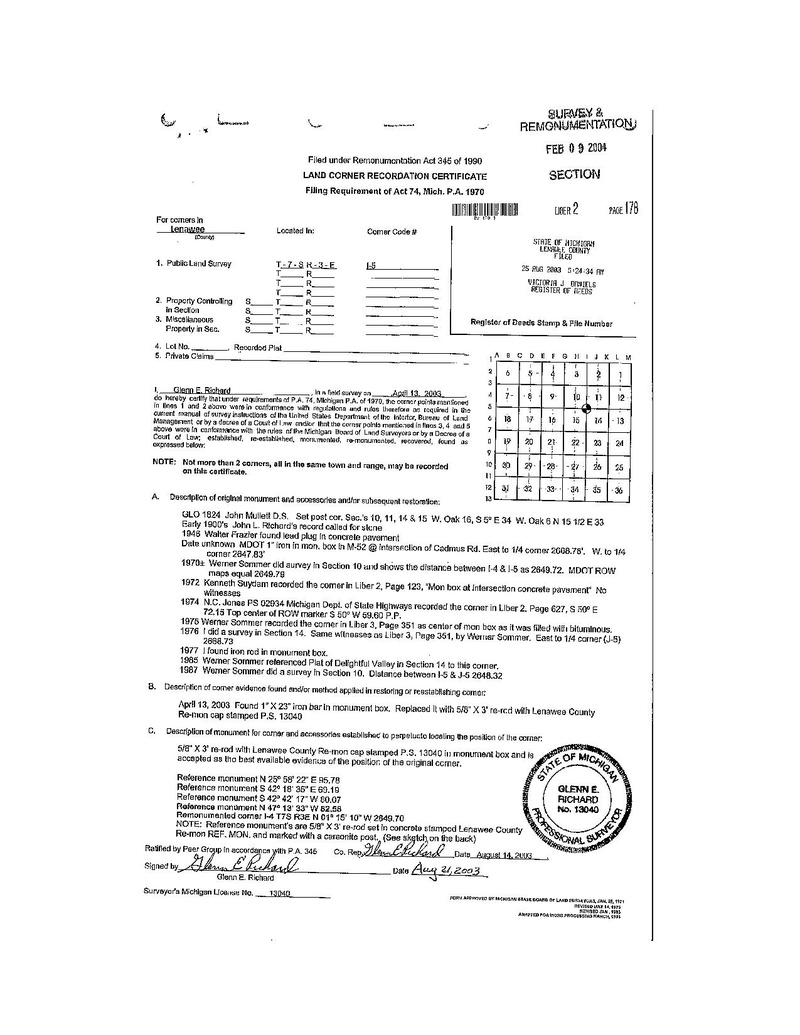

Reference Monuments Example - Page 1

Reference Monuments Example - Page 2

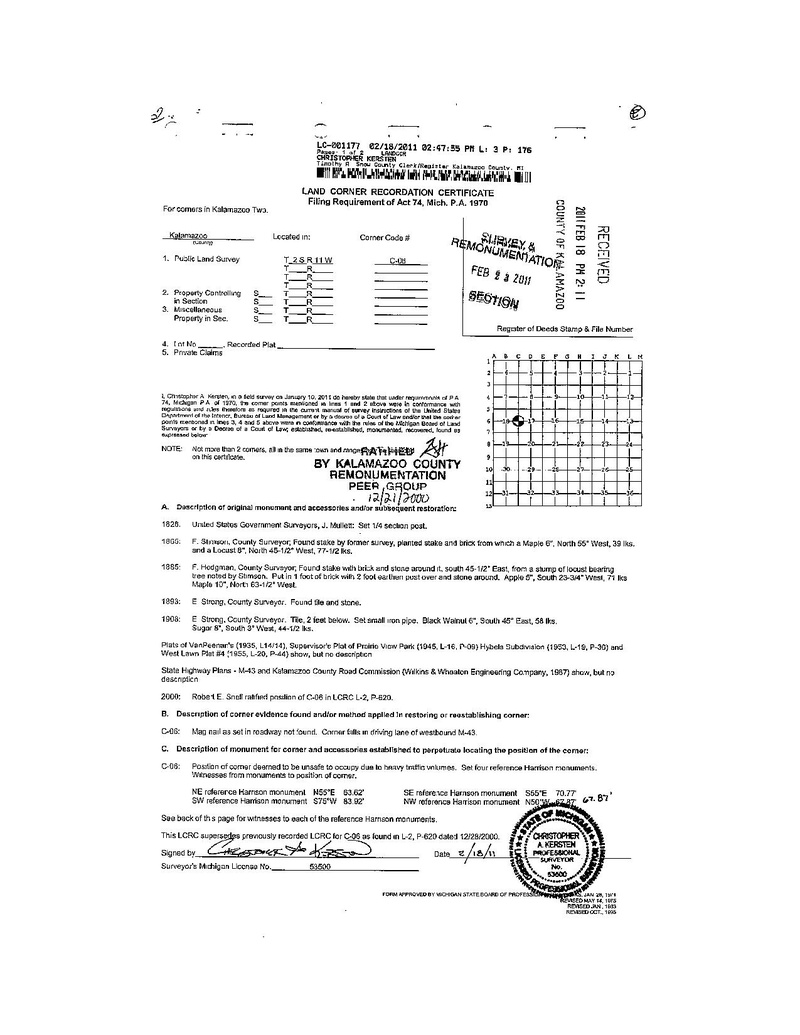

Reference Monuments Example - Page 3

Reference Monuments Example - Page 4

[top of page]

---

INSPECTION & TESTING

-Reserved-

[top of page]

---

MEASUREMENT, DOCMENTATION & PAYMENT

Prior to the final payment for preserve and protect items ensure that the submittals under the construction section are reviewed by the Region Surveyor.

[top of page]

---

LOCAL AGENCY PROJECTS

On Local Agency Projects where corners are identified within the MDOT ROW, the survey documentation will be submitted to the Region Surveyor and the local TSC DR (designated representative), corners outside of the MDOT ROW will be submitted to the Local Agency Project Engineer.
